Splitting Grouped Holes
- In meviy, holes on the same surface that have the same diameter and type are treated as a group.
- Hole type changes are applied to a whole group, so if you would like to specify a different hole type for each hole in the group, please split the grouped holes.

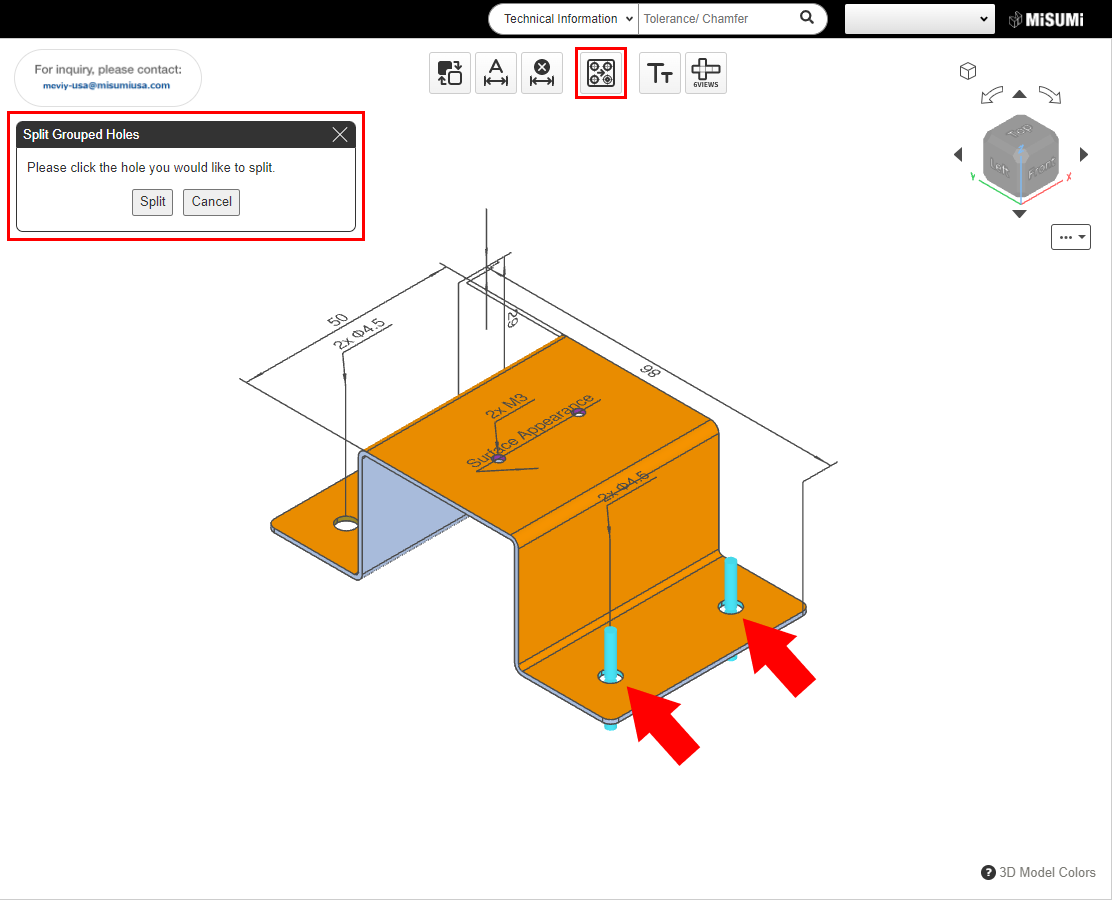

- Click and select the grouped holes.
- Select the holes you want to split from the group. The selected holes will be highlighted in blue. You can select multiple holes to split from the group.
- Click [Split].
- The selected holes will be separated from the group.
- After splitting, you will be able to change the hole type for each hole.
Separated holes cannot be re-grouped.
