To use the search window

You can refine your search to only include projects that have been quoted for in meviy. This is useful for when you want to call up a past project to check 3D models or PMI, and for making repeat orders. There are two different search methods, depending on the scope of your search.

To use the search window

There are three ways to use the search window.

When you select “Project” from the pull-down menu and search for it, the corresponding keyword in the project list will be searched and displayed.

When you select “Part Number” from the pull-down menu and search, the 3D viewer of the corresponding project will open in a separate tab.
On the other hand, if the part number is not found, you will be redirected to the part number search screen in another tab.

Select “Support” from the pull-down menu to search for information in the technical manuals.

To use the part number search screen

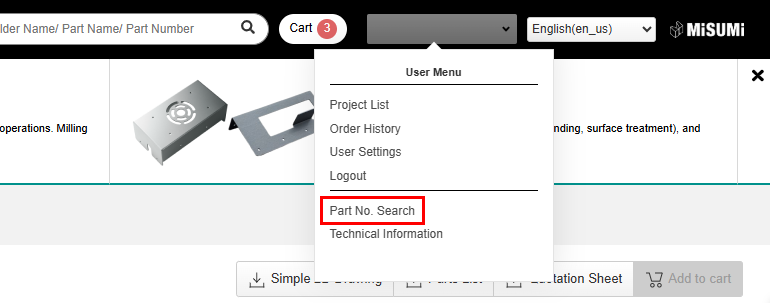

１．Click [Part No. Search] from the user menu in the project list screen.

The meviy part number search screen will appear.

2. Enter the Part Number that you want to search for.

The 3D Viewer screen will appear for the project that includes a perfect match for the Part Number that you entered.

Caution

The [Part Number Search] will only search projects whose Part Numbers have been published. → Publish an Issued Part Number/Share a Project
Only Part Numbers beginning with MV can be searched.
