Adding/Removing Dimensions
Adding dimensions
You can add dimension lines to areas where dimensions are not displayed.
- Click
and then click [OK] in the displayed dialog box, you will be able to batch add dimension lines to areas for which the dimensions were not initially displayed.
Caution
- Dimensions between separate parts cannot be added using
- For the dimension assurance range, refer to “Allowable Dimensional Tolerances“.
Deleting Dimensions
You can delete dimensions that you added accidentally or that you no longer require.
Click
and then click the dimension you want to delete.
Notes
Initial display items such as external dimensions and hole information cannot be deleted.

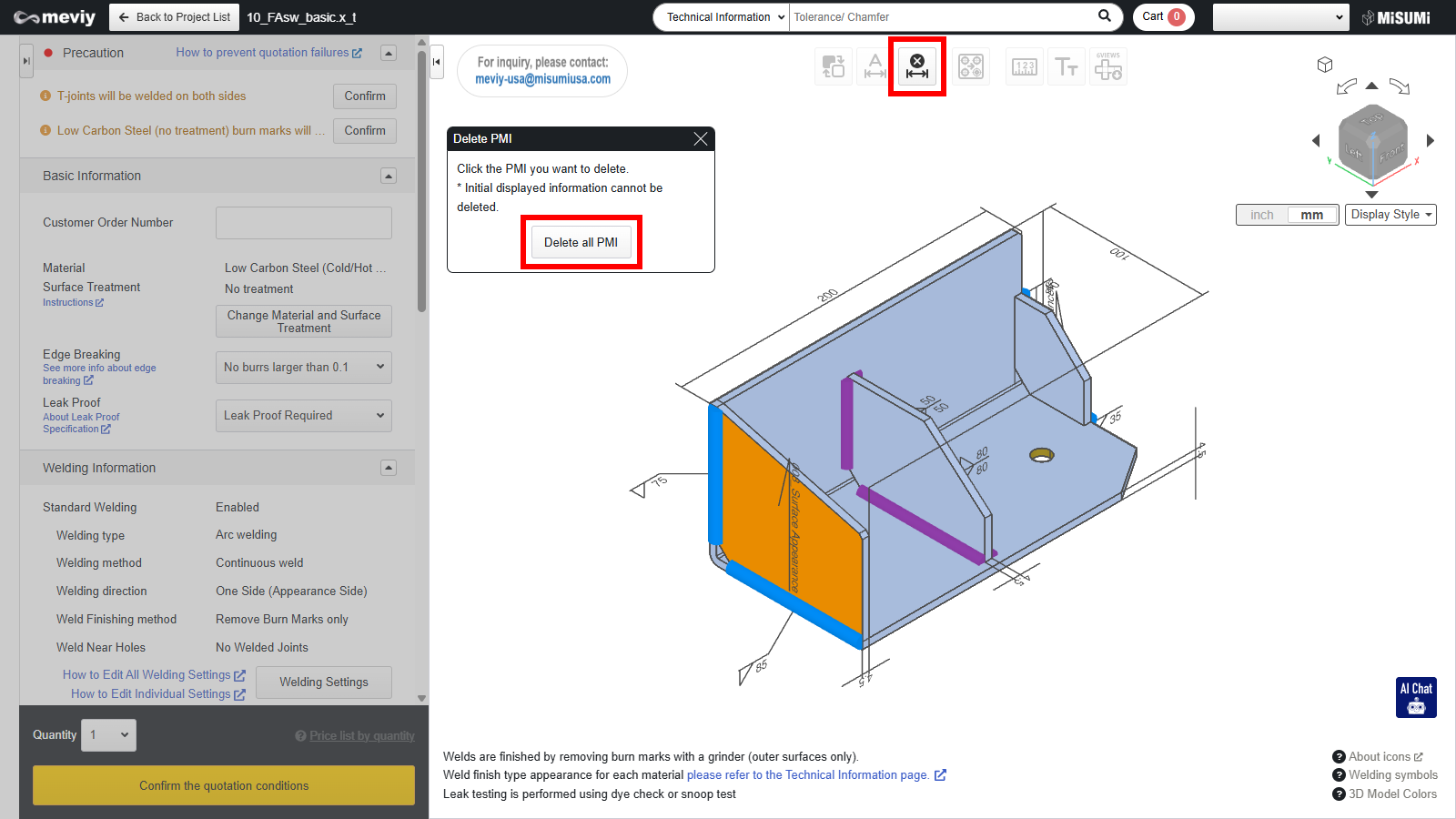

Select [Delete all PMI] in the [Delete PMI] dialog box to delete all PMI except that which is part of the initial display.
