Selectable nut sizes

Upper limit of the nut's pilot hole diameter

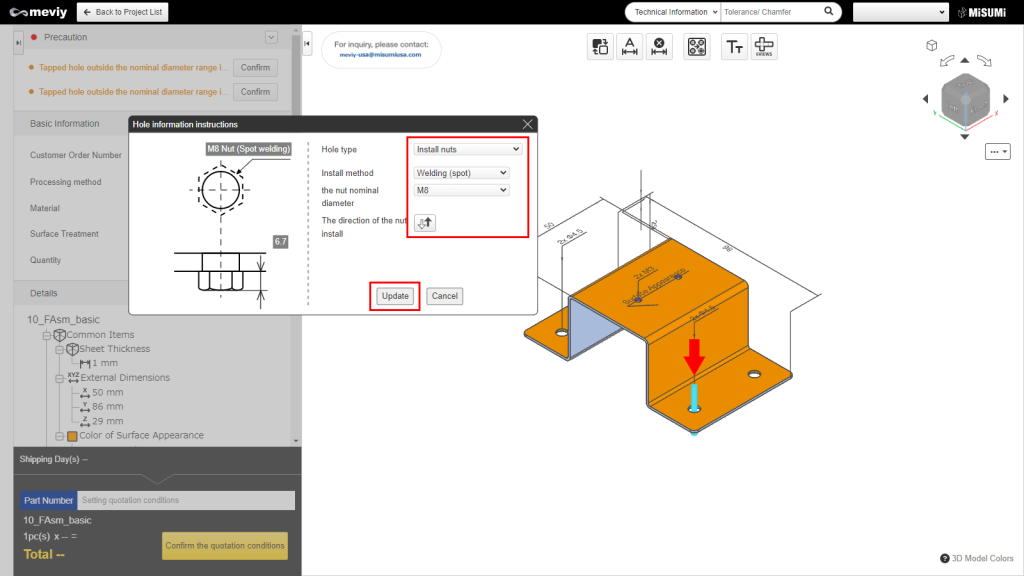

  • On meviy, when you would select nut mounting, please change the hole information indication for mounting holes.
  • You can select press-fit, weld (spot), or weld (arc) as the mounting method.
  • However, multiple mounting methods cannot be used on the same model.
  • The nominal diameters which can be selected depend on the hole diameter of the mounting hole.
  • The upper limit of hole diameter is specified for each nominal diameter. Please refer to the table below.
Press-fit nut
Press-fit nut nominal diameter Upper limit of the pilot hole diameter (d) Example
M3 d ≦ 5.5
M4 d ≦ 7.0
M5 d ≦ 8.0
M6 d ≦ 10.0
M8 d ≦ 13.0
Weld (spot) nut and weld (arc) nut
Weld nut nominal diameter Upper limit of the pilot hole diameter (d) Example
M4 d ≦ 11.0
M5 d ≦ 11.0
M6 d ≦ 13.0
M8 d ≦ 15.0
M10 d ≦ 17.0
M12 d ≦ 19.0

Maximum number of nuts which can quote automatically

  • As a condition of the automatic quotation, there is a limit that the number of nuts mounted per model. Please refer to the table below.
  • If the number of nuts is more than the limit, meviy support can provide a quotation (request a manual quotation).
  • If you wish to use weld (arc) nuts, please request a quotation from meviy support regardless of the number of nuts.
Types of nut Maximum number of nut which can automatic quotation per model
Press-fit nut 12
Weld (spot) nut 12

Select the size of nut

  • Selectable sizes vary by material and thickness. Please refer to the table below.
  • Nut mounting cannot be selected for perforated metal, shim plate (Cold Rolled Low Carbon Steel (for Shims), 304 Stainless Steel (for Shims)), and resin.
Press-fit nut
Material Thickness Press-fit nut nominal diameter
  • Low Carbon Steel (Cold/Hot Rolled)
 0.8 M3 M4
1.0 M3 M4 M5 M6
1.2 M3 M4 M5 M6
1.6 M3 M4 M5 M6
2.0 M3 M4 M5 M6 M8
2.3 M3 M4 M5 M6 M8
3.2 M3 M4 M5 M6 M8
  • 304 Stainless Steel (2B)
  • 304 Stainless Steel (Single-Sided #400-Grit Polished)
  • 304 Stainless Steel (Single-sided hairline finish)
  • 430 Stainless Steel (2B)
 1.0 M3 M4 M5 M6
1.2 M3 M4 M5 M6
1.5 M3 M4 M5 M6
2.0 M3 M4 M5 M6 M8
2.5 M3 M4 M5 M6 M8
3.0 M3 M4 M5 M6 M8
5052 Aluminum Alloy 0.8 M3 M4
1.0 M3 M4 M5 M6
1.2 M3 M4 M5 M6
1.5 M3 M4 M5 M6
1.6 M3 M4 M5 M6
2.0 M3 M4 M5 M6 M8
2.5 M3 M4 M5 M6 M8
3.0 M3 M4 M5 M6 M8
  • 5052 AL Alloy Pre-Finish, Clear Anodize（Clear Anodize）
  • 5052 AL Alloy Pre-Finish, Black Anodize（Black Anodize）
 1.0 M3 M4 M5 M6
1.5 M3 M4 M5 M6
2.0 M3 M4 M5 M6 M8
3.0 M3 M4 M5 M6 M8
Weld (spot) nut
Material Thickness Weld (spot) nut nominal diameter
  • Low Carbon Steel (Cold/Hot Rolled)
 0.8 M4 M5 M6
1.0 M4 M5 M6
1.2 M4 M5 M6 M8
1.6 M4 M5 M6 M8 M10 M12
2.0 M4 M5 M6 M8 M10 M12
2.3 M4 M5 M6 M8 M10 M12
3.2 M4 M5 M6 M8 M10 M12
  • 304 Stainless Steel (2B)
  • 304 Stainless Steel (Single-Sided #400-Grit Polished)
  • 304 Stainless Steel (Single-sided hairline finish)
  • 430 Stainless Steel (2B)
 0.8 M4 M5 M6 M8 M10 M12
1.0 M4 M5 M6 M8 M10 M12
1.2 M4 M5 M6 M8 M10 M12
1.5 M4 M5 M6 M8 M10 M12
2.0 M4 M5 M6 M8 M10 M12
2.5 M4 M5 M6 M8 M10 M12
3.0 M4 M5 M6 M8 M10 M12
4.0 M4 M5 M6 M8 M10 M12
5.0 M4 M5 M6 M8 M10 M12
6.0 M4 M5 M6 M8 M10 M12

↑
