Range of Machining Limits of Socket Mounted Products

The limits for machining and the size ranges are defined for each standard part. Make sure that any models you create fall within the standard range.

*Values may differ from those listed depending on surface treatment, shape, and processing conditions.

Maximum distance between socket (Edge Face) and bend
Material Sheet Thickness Limit
  • Low Carbon Steel (Cold/Hot Rolled)
  • Low Carbon Steel (Electrolytic Zinc Plating)
 1.0 10.0
1.2
1.6
2.0
2.3
3.2 15.0
4.5
6.0
  • 304 SS (2B)
  • 304 SS (#400)
  • 304 SS (Hairline Finish)
  • 430 SS (2B)
 1.0 10.0
1.2
1.5
2.0
2.5
3.0 15.0
4.0
5.0
6.0
Example

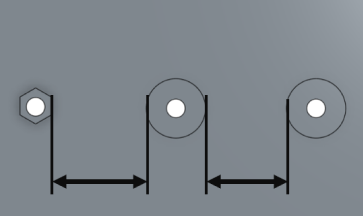

Minimum Distance Between the Socket and the Mounted Component
Material Sheet Thickness Limit
  • Low Carbon Steel (Cold/Hot Rolled)
  • Low Carbon Steel (Electrolytic Zinc Plating)
 1.0 30.0
1.2
1.6
2.0
2.3
3.2
4.5
6.0
  • 304 SS (2B)
  • 304 SS (#400)
  • 304 SS (Hairline Finish)
  • 430 SS (2B)
 1.0 30.0
1.2
1.5
2.0
2.5
3.0
4.0
5.0
6.0
Example
Minimum distance between socket and hole
Material Sheet Thickness Limit
  • Low Carbon Steel (Cold/Hot Rolled)
  • Low Carbon Steel (Electrolytic Zinc Plating)
 1.0 10.0
1.2
1.6
2.0
2.3
3.2
4.5 15.0
6.0
  • 304 SS (2B)
  • 304 SS (#400)
  • 304 SS (Hairline Finish)
  • 430 SS (2B)
 1.0 10.0
1.2
1.5
2.0
2.5
3.0
4.0 15.0
5.0
6.0
Example

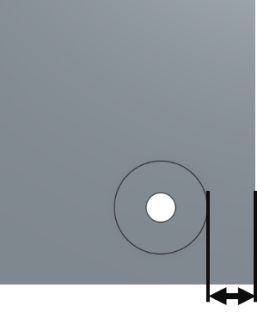

Minimum distance between socket and edge of the material
Material Sheet Thickness Limit
  • Low Carbon Steel (Cold/Hot Rolled)
  • Low Carbon Steel (Electrolytic Zinc Plating)
 1.0 10.0
1.2
1.6
2.0
2.3
3.2
4.5 15.0
6.0
  • 304 SS (2B)
  • 304 SS (#400)
  • 304 SS (Hairline Finish)
  • 430 SS (2B)
 1.0 10.0
1.2
1.5
2.0
2.5
3.0
4.0 15.0
5.0
6.0
Example
